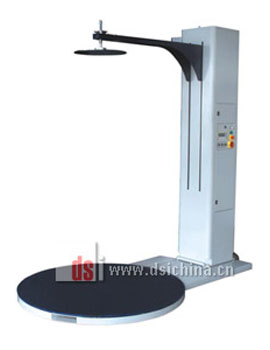

DPA-3000 Automatic Pallet Stretch Wrapper
Features & Specification
Suitable for light and unstable products,soft start/stop,PLC control,home position,sensor test pallet height
Specification
| Power Voltage | 1P AC220V 50/60Hz 1.0KW |
|---|---|
| Speed of turnplate | 0~12r/min |
| Dia.of turntable | ø1500mm(optional ø1650/ø2000etc.) |
| Top-press plate diameter | 900mm(custom-made is available) |
| Mast height | H2400mm(option 2000/2700/2900/3000/3100) |
| Film | LLDPE film,width<=500mm,out diameter<=280mm |
| Pallet size | Capacity 2000kg;max height=mast height-400mm |
| Package size | 2650 x 1650 x 800mm |
| G.W/N.W | 800kg/700kg |
| Option | 1.Ramps 2.Pannel3.LCD location 4.Magnetic clutch |
